Social Network Status Updates – Database Schema

Here's a simple database schema which can be used in cases where you want to take user status input. The entities available are users, updates, comments & likes. Additional entities can be added as required. Also, for simple user registration and status updates it will be more than enough.  Schema derived by studying popular social networks like Facebook / Twitter / Google+ Status Updates mechanism. The schema uses MySql.

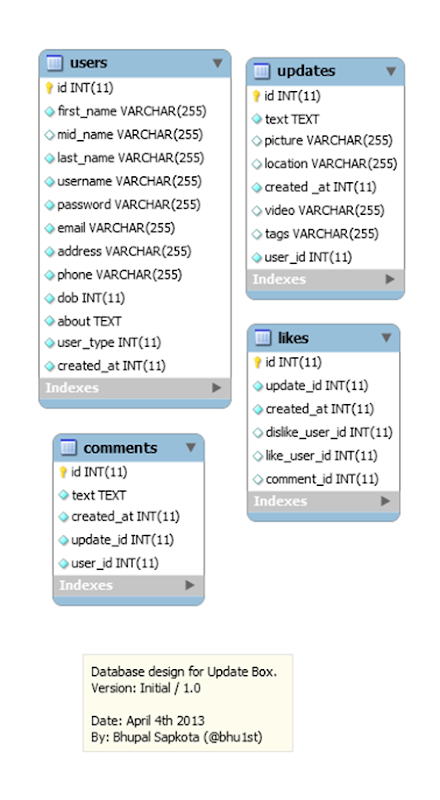

Schema Diagram:updatebox

MySQL Create Script:
-- phpMyAdmin SQL Dump
-- version 3.2.0.1
-- http://www.phpmyadmin.net
--
-- Host: localhost
-- Generation Time: Apr 03, 2013 at 09:56 PM
-- Server version: 5.1.37
-- PHP Version: 5.3.0
SET SQL_MODE="NO_AUTO_VALUE_ON_ZERO";

/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
--
-- Database: `updatebox`
--
-- --------------------------------------------------------
--
-- Table structure for table `comments`
--
CREATE TABLE IF NOT EXISTS `comments` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `text` text CHARACTER SET utf8 NOT NULL,
  `created_at` int(11) NOT NULL,
  `update_id` int(11) NOT NULL,
  `user_id` int(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 AUTO_INCREMENT=1 ;
--
-- Dumping data for table `comments`
--

-- --------------------------------------------------------
--
-- Table structure for table `likes`
--
CREATE TABLE IF NOT EXISTS `likes` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `update_id` int(11) NOT NULL,
  `created_at` int(11) NOT NULL,
  `dislike_user_id` int(11) DEFAULT NULL,
  `like_user_id` int(11) DEFAULT NULL,
  `comment_id` int(11) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 AUTO_INCREMENT=1 ;
--
-- Dumping data for table `likes`
--

-- --------------------------------------------------------
--
-- Table structure for table `updates`
--
CREATE TABLE IF NOT EXISTS `updates` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `text` text CHARACTER SET utf8 NOT NULL,
  `picture` varchar(255) DEFAULT NULL,
  `location` varchar(255) DEFAULT NULL,
  `created _at` int(11) NOT NULL,
  `video` varchar(255) DEFAULT NULL,
  `tags` varchar(255) DEFAULT NULL,
  `user_id` int(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 AUTO_INCREMENT=1 ;
--
-- Dumping data for table `updates`
--

-- --------------------------------------------------------
--
-- Table structure for table `users`
--
CREATE TABLE IF NOT EXISTS `users` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `first_name` varchar(255) NOT NULL,
  `mid_name` varchar(255) DEFAULT NULL,
  `last_name` varchar(255) NOT NULL,
  `username` varchar(255) NOT NULL,
  `password` varchar(255) NOT NULL,
  `email` varchar(255) NOT NULL,
  `address` varchar(255) NOT NULL,
  `phone` varchar(255) NOT NULL,
  `dob` int(11) NOT NULL,
  `about` text NOT NULL,
  `user_type` int(11) NOT NULL,
  `created_at` int(11) NOT NULL,
  PRIMARY KEY (`id`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 AUTO_INCREMENT=1 ;
--
-- Dumping data for table `users`
--

/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
